Memory Management in Linux
Memory management is one of the most critical functions of the Linux kernel. It ensures that every process has the memory it needs to run while optimizing overall system performance. In this context, memory refers to RAM (Random Access Memory), which is the fast, volatile memory used to store data and instructions currently being executed by the CPU. This is distinct from storage, which refers to hard disks, SSDs, or other non-volatile storage devices.
In this blog, we’ll explore how Linux manages memory, including its components, techniques, and tools. Let’s dive in.
What is Memory Management?
Memory management is the kernel’s method of controlling and coordinating how memory (RAM) is allocated, used, and reclaimed. The kernel dynamically allocates memory to processes, ensures safe sharing of memory, and prevents processes from interfering with each other.
Why is Memory Management Important?
Efficient Resource Utilization:
RAM is limited and needs to be efficiently shared among processes.
Multitasking:
Processes need isolated memory spaces to avoid conflicts and maintain security.
Performance Optimization:
Proper memory management minimizes delays, avoids memory fragmentation, and ensures that frequently accessed data is kept in fast RAM.
Key Concepts in Linux Memory Management
1. Virtual Memory
2. Paging
3. Swapping
4. Cache and Buffers
Memory Zones
The kernel divides physical memory into zones to handle hardware constraints:
DMA Zone: For legacy devices that can only access low memory (<16 MB).
Normal Zone: Usable memory for most kernel and user processes.
High Memory Zone: Memory accessible only through special kernel mechanisms (e.g., on 32-bit systems).
How Linux Allocates Memory
1. Process Memory Layout
Each process has a structured memory layout:
Text Segment: Stores the program’s code (read-only).
Data Segment: Stores global and static variables.
Heap: Dynamically allocated memory (e.g., using
malloc()in C).Stack: Stores function call information and local variables.
Memory Mapped Segment: Used for shared libraries and memory-mapped files.
Detailed information about process address space ( memory layout ) is available here.
2. Dynamic Memory Allocation
malloc():
Used by programs to request memory at runtime.
Allocates memory from the heap.
free():
Releases memory back to the system.
3. Kernel Memory Management
The kernel allocates memory for its own data structures and buffers.
Slab Allocator: Optimized for frequent allocations and deallocations of small memory objects.

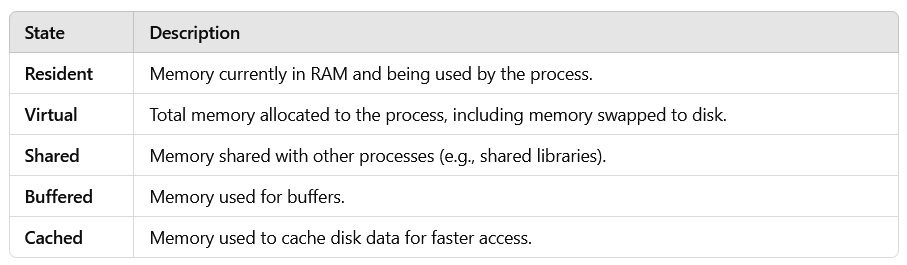

Process Memory States
Processes in Linux can hold memory in different states:
Tools to Monitor Memory Usage
Linux provides several tools to monitor and debug memory usage:
Memory Lifecycle in Linux
Here’s a high-level view of how memory is managed through a process’s lifecycle:
Process Creation:
The kernel allocates memory for the new process’s code, data, and stack.
Virtual memory mappings are established.
Execution:
Pages are loaded into RAM as needed (on-demand paging).
The kernel caches frequently accessed data.
I/O Operations:
Buffers are used for data being written to storage.
Cache is used to speed up repeated reads.
Termination:
The kernel reclaims all memory used by the process.
Recommendations
For Administrators
Monitor Memory:
Use tools like
free,htop, and/proc/meminfoto identify memory bottlenecks.
Manage Swap Space:
Ensure sufficient swap space is available, but avoid over-reliance on it.
Use cgroups:
Control memory usage of specific processes or groups of processes using cgroups.
Conclusion
Memory management in Linux is a complex but essential process that ensures efficient use of RAM while maintaining system stability and performance. From virtual memory and paging to caching and swapping, the kernel employs sophisticated techniques to manage resources effectively. Whether you’re a developer optimizing an application or an administrator managing system performance, understanding Linux memory management is key to success.
